HOLE DIAMETER

0.450 INCHES NOMINAL

HOLE DEPTH

1.000 INCHES NOMINAL

OVERALL LENGTH

28.460 INCHES NOMINAL

METALLIC HARDNESS RATING

50.0 NOMINAL ROCKWELL C

END ITEM IDENTIFICATION

2320-01-412-0143

HOLE SCREW THREAD SERIES DESIGNATOR

UNC

HOLE THREAD DIRECTION

RIGHT-HAND

SECOND END PITCH DIAMETER

1.333 INCHES NOMINAL

FIRST END TYPE

FLANGED

SECOND END TYPE

SPLINED

HOLE QUANTITY

1

MOUNTING FACILITY TYPE AND QUANTITY

6 UNTHREADED HOLE

SECOND END SPLINE QUANTITY

32

HOLE THREAD SIZE

3/8-16

FIRST END BEARING SEAT

NOT INCLUDED

SECOND END SPLINE TYPE

INVOLUTE

SECOND END SPLINE PRESSURE ANGLE IN DEG

45.0

SECOND END BEARING SEAT

NOT INCLUDED

END HOLE TYPE

THREADED

FLANGE OVERALL THICKNESS

3.550 INCHES NOMINAL

FLANGE THICKNESS AT MOUNTING HOLE

0.200 INCHES NOMINAL

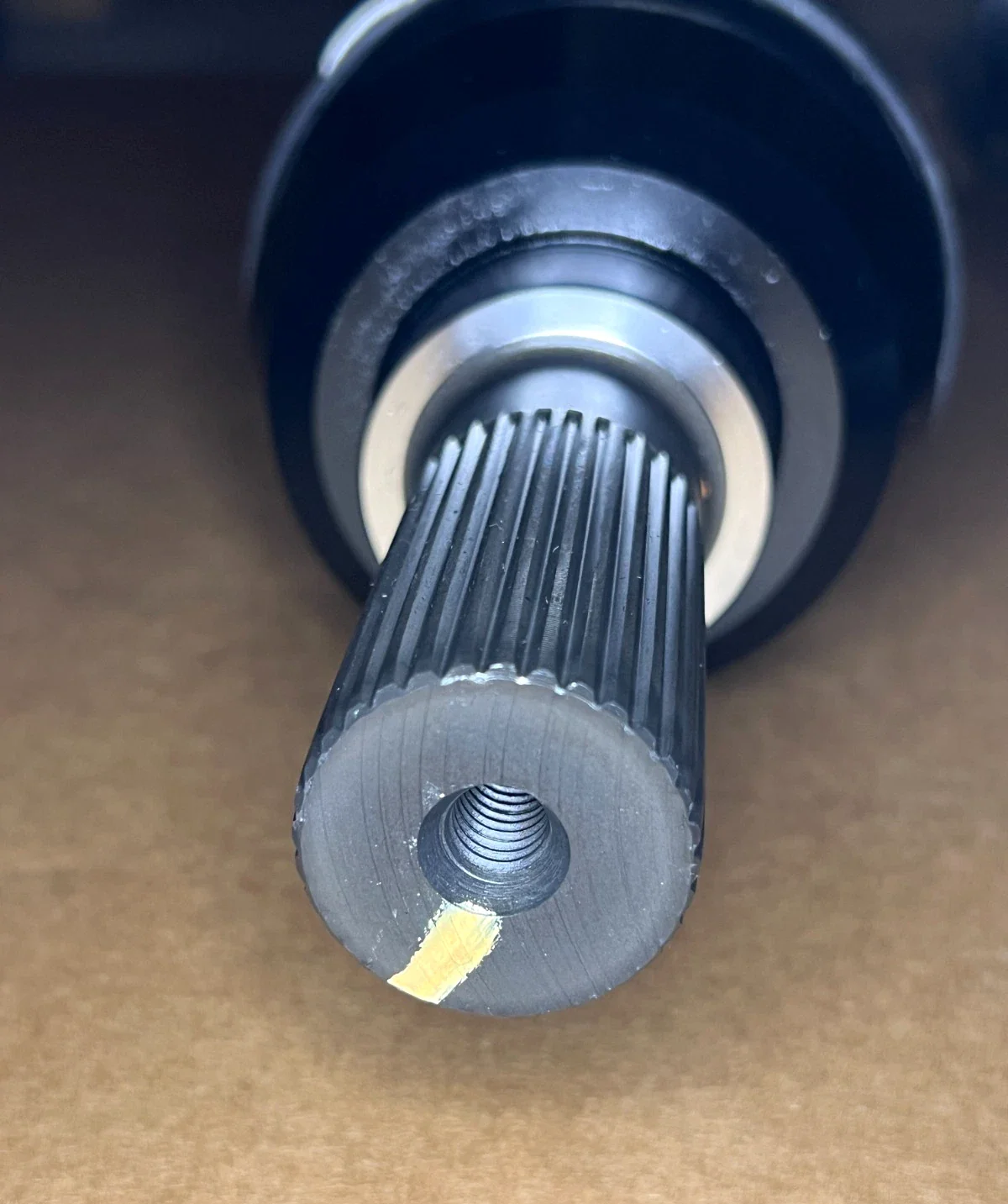

SPECIAL FEATURES

REAR HALFSHAFT
