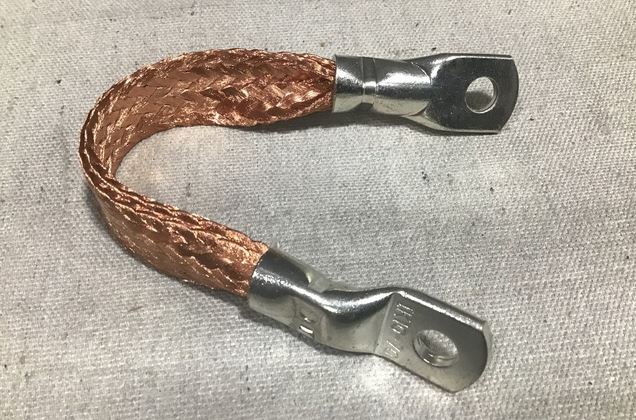

6150-12-322-2522 LEAD,ELECTRICAL 020.03.0006

Name Value CROSS-SECTIONAL SHAPE STYLE FLAT CROSS SECTION OUTSIDE DIAMETER 20,0 MILLIMETERS NOMINAL CROSS-SECTIONAL HEIGHT 4,0 MILLIMETERS NOMINAL CROSS-SECTIONAL WIDTH 20,0 MILLIMETERS NOMINAL CENTER TO CENTER DISTANCE BETWEEN TERMINAL HOLES 255,0 MILLIMETERS NOMINAL TERMINATION TYPE LUG TERMINAL W/MOUNTING HOLE 1ST END SINGLE CONDUCTOR TERMINATION TYPE LUG TERMINAL W/MOUNTING HOLE 2ND END SINGLE CONDUCTOR LEAD OVERALL LENGTH 285,0 MILLIMETERS NOMINAL STRAND QUANTITY PER CONDUCTOR 5280 SINGLE CONDUCTOR ROUND CONDUCTOR SIZE 40,0 SQUARE MILLIMETERS SINGLE CONDUCTOR CONDUCTOR CROSS-SECTIONAL SHAPE FLAT/RIBBON SINGLE CONDUCTOR TERMINAL LUG APERTURE SIZE 10,5 MILLIMETERS 1ST END SINGLE CONDUCTOR TERMINAL LUG APERTURE SIZE 10,5 MILLIMETERS 2ND END SINGLE CONDUCTOR TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER DIN46235-10-70-S 2ND END SINGLE CONDUCTOR TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER DIN46235-10-70-S 1ST END SINGLE CONDUCTOR TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE D8286 1ST END SINGLE CONDUCTOR TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE D8286 2ND END SINGLE CONDUCTOR MATERIAL COPPER CORE CONDUCTOR SINGLE CONDUCTOR TERMINATION TYPE LUG TERMINAL W/MOUNTING HOLE BOTH ENDS SINGLE CONDUCTOR CONDUCTOR FORM BRAID, FLAT SINGLE CONDUCTOR TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER DIN46235-10-70-S BOTH ENDS SINGLE CONDUCTOR
