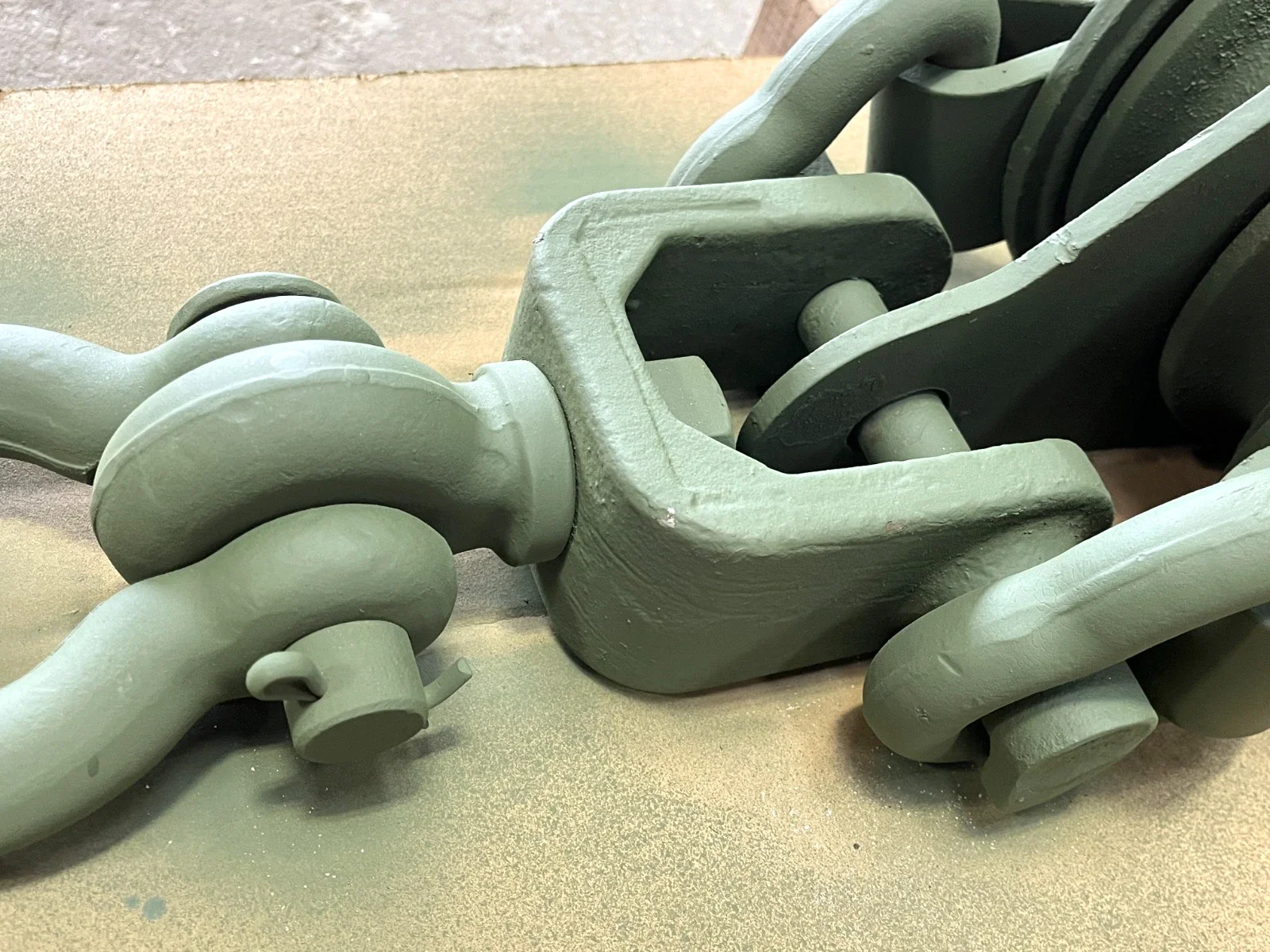

5/8 X 8 INCH DOUBLE SHEAVE SNATCH BLOCK 50,000 Pound Capacity 10884778



New Block and Tackle Heavy Duty Military Truck

5/8 X 8 INCH DOUBLE SHEAVE BLOCK



Please note: Freight is a flat fee of the amount charged when shipped to either a commercial address or freight terminal. Residential shipping is available, but will cost $100 more. Freight prices are subject to change depending on delivery address.



BEARING TYPE ROLLER

MAXIMUM LOAD RATING 50000.0 POUNDS

BLOCK TYPE REGULAR

SHEAVE QUANTITY 2

TACKLE ACCOMMODATED TYPE WIRE ROPE

ANTITOPPLING DEVICE NOT INCLUDED

SHELL LENGTH 9.000 INCHES NOMINAL

SHEAVE OUTSIDE DIAMETER 7.750 INCHES NOMINAL

CENTER PIN DIAMETER 2.000 INCHES NOMINAL

SHEAVE BEARING LUBRICATION METHOD PRESSURE GREASE FITTING

MAXIMUM TACKLE DIAMETER ACCOMMODATED 0.625 INCHES

TACKLE LOCKING DEVICE NOT INCLUDED

ATTACHMENT STYLE DRILLED SWIVEL EYE AND SHACKLE

MATERIAL AND LOCATION STEEL OVERALL

SURFACE TREATMENT AND LOCATION PAINTED OVERALL

SPECIAL FEATURES OLIVE DRAB COLOR

STYLE DESIGNATOR OVAL PATTERN
