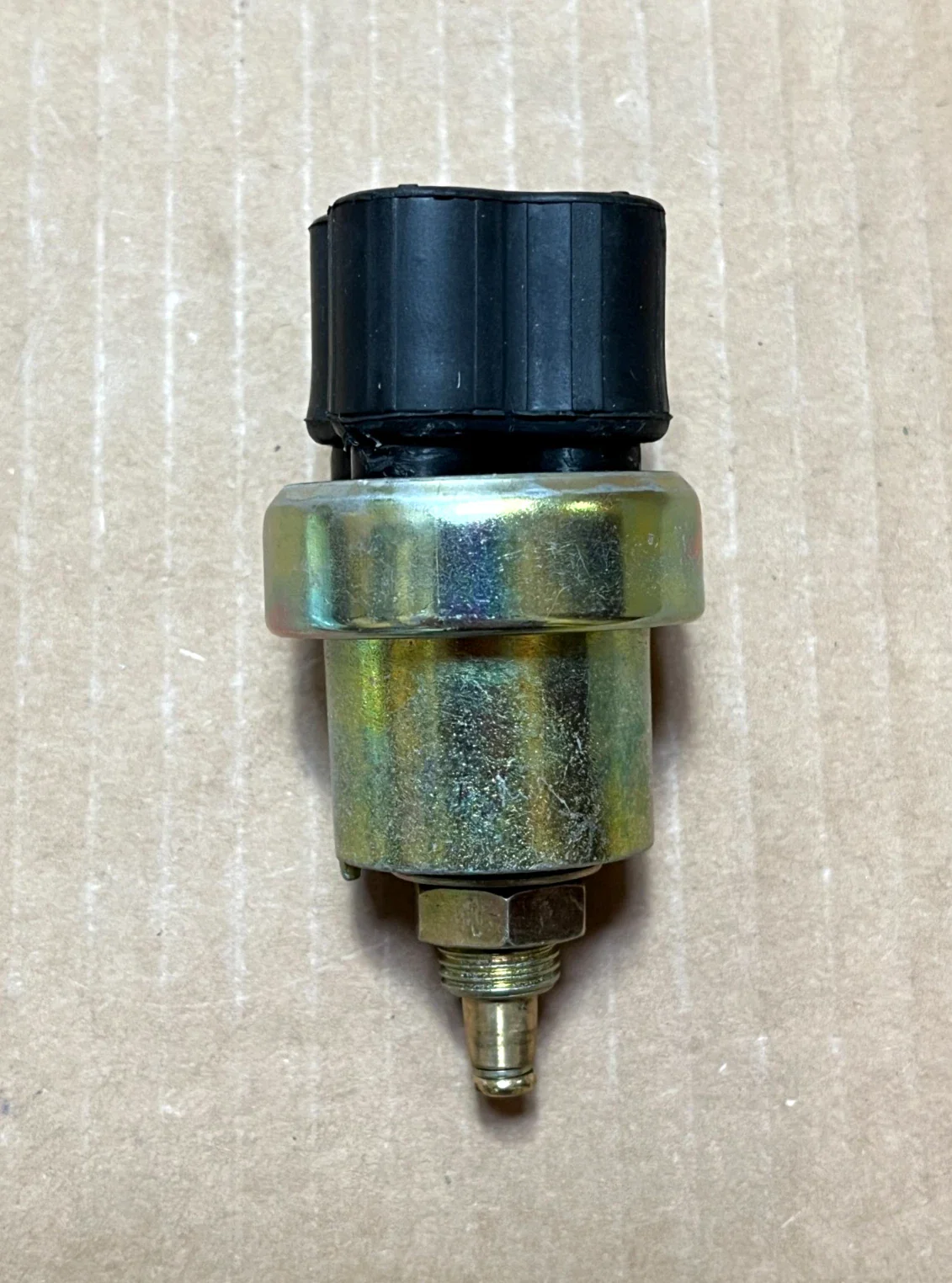

THREAD CLASS

2A SINGLE MOUNTING FACILITY

THREAD LENGTH

0.560 INCHES NOMINAL SINGLE MOUNTING FACILITY

WIDTH BETWEEN FLATS

0.214 INCHES MINIMUM AND

0.217 INCHES MAXIMUM SINGLE ACTUATOR

HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION

WATERTIGHT

OVERALL LENGTH

3.520 INCHES NOMINAL

FIRST FLAT LENGTH

0.190 INCHES NOMINAL SINGLE ACTUATOR

SHAFT DIAMETER

0.310 INCHES MINIMUM AND

0.314 INCHES MAXIMUM SINGLE ACTUATOR

SHAFT LENGTH

0.380 INCHES NOMINAL SINGLE ACTUATOR

OVERALL DIAMETER

1.750 INCHES NOMINAL

NONTURN DEVICE RADIUS

0.625 INCHES NOMINAL AT 3:00 O'CLOCK

INDIVIDUAL SECTION QUANTITY

1

NONTURN DEVICE TYPE

TAB AT 3:00 O'CLOCK

SWITCH CONTACT BASIC DESIGN

NONPILE-UP NONSYMMETRICAL

MOUNTING METHOD

THREADED BUSHING SINGLE MOUNTING FACILITY

NOMINAL THREAD SIZE

0.500 INCHES SINGLE MOUNTING FACILITY

CONTACT VOLTAGE RATING IN VOLTS

28.0 DC AT SEA LEVEL

SWITCH ACTUATOR INDEXING POSITION QUANTITY

2 SINGLE ACTUATOR

SHAFT TYPE

ROUND, PARALLEL FLATTED SINGLE ACTUATOR

TERMINAL TYPE

CONNECTOR, RECEPTACLE

SWITCH ACTUATOR POSITIONING INCREMENT

45.0 DEGREES SINGLE ACTUATOR

CONTACT LOAD CURRENT RATING

10.0 AMPERES RESISTIVE LOAD AND

10.0 AMPERES INDUCTIVE LOAD AND

5.0 AMPERES LAMP LOAD DC AT SEA LEVEL

SPECIAL FEATURES

THREADED HOLE IN SHAFT

SPEC/STD CONTROLLING DATA

MANUFACTURERS CODE

81349

NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE

MIL-DTL-13623/1

DEFINITIVE GOVERNMENT SPEC/STD REFERENCE

MIL-DTL-13623/1-2

STYLE DESIGNATOR

SNAP OR LINE

TEST DATA DOCUMENT

81349-MIL-S-13623 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.).

THREAD SERIES DESIGNATOR

UNF SINGLE MOUNTING FACILITY

SPECIFICATION/STANDARD DATA

96906-MS39060 GOVERNMENT STANDARD

ROTOR INPUT VOLTAGE RATING IN VOLTS

26.0 NOMINAL

MEDIA FOR WHICH DESIGNED

FUEL/OIL, HYDROCARBON

FSC APPLICATION DATA

LUBRICATING OIL FILTER,ENGINE,NONAIRCRAFT
